Product Show

 Product >> Active Components/Laser/Source >> ASE Light Source

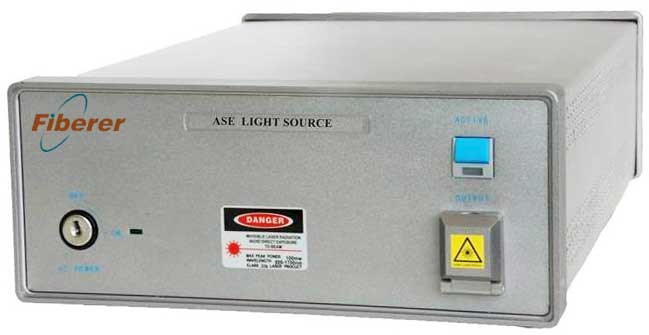

ASE Light Source
Name:

ASE Light Source

Class:
Active Components/Laser/Source
Type:
ASE Light Source

ASE Light Source Specification


(323 pcs purchased)

Fiberer Rohs

Applications

Optical fiber sensing
Optical fiber passive component spectrum testing
Optical fiber grating, DWDM, filter testing
Optical fiber measurement equipments

Features

High output power
High stability
Broadband spectrum output,covering C band and C+L band

Specifications

Parameters
ASE-C+L
Operating wavelength (nm)
1525 1610
Output power (dBm)
10~25.0
Spectral density (dBm/nm)
-17
Spectral stability (dBm/nm)
±0.01(5 min)
Output power short-term stability (dB)
±0.01(5 min)
Output power long-term stability (dB)
±0.03(8 hour)
Pigtail fiber
SMF-28
Connector type
FC/PC, FC/UPC or FC/APC
Operating temperature ()
 0 +65
Storage temperature ()
-20 +70
Relative humidity (%)
2080
Power Supply
110/220V AC, +5V DC, Driving current >500mA; V1%
Maximal Power Consumption
10W
Dimensions (L×W×H mm)
150×125×31, 320×220×90


RemarkStability is tested at room temperature 25±2 after pre-heating 30 minutes.
               1.  Test condition: fixed temperature, CW.
               2.  Test condition: temperature variation ±2, CW.


Ordering information
ASE-C+L
Type
Output Power
GFF
Connector

M=Module
D=Desk-top
   10=10dBm
13=13dBm
17=13db
etc
G=GFF
   N=Without GFF
FC/UPC
FC/APC
etc






Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
